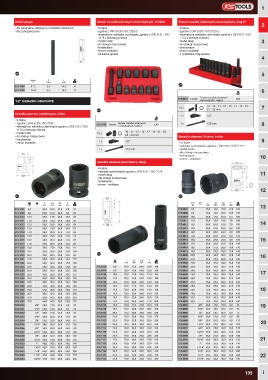

P. 139
1
Kołek łączący Zestaw nasadek udarowych sześciokątnych, krótkich Zestaw nasadek udarowych sześciokątnych, długich
2
• dla wkrętaków udarowych i nasadek udarowych • 6-kątne • 6-kątne
• dla zabezpieczenia • zgodne z DIN 3129 / ISO 2725-2 • zgodne z DIN 3129 / ISO 2725-2
• wewnętrzna nakładka czterokątna zgodna z DIN 3121 / ISO • wewnętrzna nakładka czterokątna zgodna z DIN 3121 / ISO
1174 z blokadą kulkową 1174 z blokadą kulkową
• model krótki • model długi 3
• do obsługi maszynowej • do obsługi maszynowej
• fosfatowane • fosfatowane
• chrom molibden • chrom molibden
• na listwie gniazd • z podkładką magnesową
4
5
515.1538 6-12 2,5 14,0 10
6
515.1539 13-22 2,5 16,0 14
Zestaw nasadek udarowych
515.0612 13sztuk 2,69
1/2" GNIAZDO UDAROWE sześciokątnych, długich
12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 -
10 x 7
21 - 22 mm
Nasadka udarowa sześciokątna, krótka
1 x 1/2“
• 6-kątne
• zgodne z DIN 3129 / ISO 2725 515.0112 12sztuk Zestaw nasadek udarowych 2,40 1 x 125 mm 8
• wewnętrzna nakładka czterokątna zgodna z DIN 3121 / ISO sześciokątnych, krótkich
1174 z blokadą kulkową
• model krótki 10 x 10 - 11 - 13 - 14 - 17 - 19 - 21 - 22
• do obsługi maszynowej 23 - 24 mm Nasadka udarowa 12-kątna, krótka
• fosfatowane 1 x 1/2“ 9
• chrom molibden • 12-kątne
• nakrętka sześciokątna zgodna z DIN 3121 / ISO 1174
1 x 125 mm • model krótki
• dla obsługi maszynowej
• fosfatowane 10
• chrom - molibden
Nasadka udarowa sześciokątna, długa
• 6-kątne
• nakrętka sześciokątna zgodna z DIN 3121 / ISO 1174
• model długi 11
• dla obsługi maszynowej
• fosfatowane
• chrom - molibden
12
13
515.1008 8,0 38,0 15,0 24,0 8,0 57 515.0987 8,0 78,0 14,6 25,0 12,0 160
515.1009 9,0 38,0 16,0 24,0 8,0 60 515.0988 9,0 78,0 15,8 25,0 12,0 160
515.1010 10,0 38,0 17,0 24,0 10,0 60 515.0910 10,0 38,0 17,0 24,0 6,0 100
515.1011 11,0 38,0 18,0 24,0 10,0 62 515.0911 11,0 38,0 18,0 24,0 7,0 100
515.1012 12,0 38,0 20,0 24,0 10,0 64 515.0912 12,0 38,0 20,0 24,0 7,0 100 14
515.1013 13,0 38,0 21,0 24,0 10,0 67 515.0913 13,0 38,0 21,0 24,0 8,0 100
515.1014 14,0 38,0 22,0 24,0 11,0 69 515.0914 14,0 38,0 22,0 24,0 8,0 100
515.1015 15,0 38,0 23,0 24,0 11,0 74 515.0915 15,0 38,0 23,0 24,0 9,0 140
515.1016 16,0 38,0 25,0 24,0 11,0 72 515.0916 16,0 38,0 25,0 24,0 9,0 140 15
515.1017 17,0 38,0 26,0 26,0 12,0 89 515.0917 17,0 38,0 26,0 26,0 10,0 140
515.1018 18,0 38,0 27,0 28,0 13,0 111 515.0918 18,0 38,0 27,0 28,0 10,0 140
515.1019 19,0 38,0 28,0 28,0 13,0 100 515.0919 19,0 38,0 28,0 28,0 12,0 140
515.1020 20,0 38,0 30,0 30,0 13,0 121 515.0920 20,0 38,0 30,0 30,0 12,0 140 16
515.1021 21,0 38,0 30,0 30,0 14,0 125 515.0921 21,0 38,0 30,0 30,0 13,0 150
515.1022 22,0 38,0 32,0 30,0 14,0 130 515.0922 22,0 38,0 32,0 30,0 14,0 150
515.1023 23,0 38,0 34,0 30,0 15,0 140 515.1108 8,0 78,0 15,0 24,0 12,0 160 515.0923 23,0 38,0 34,0 30,0 14,0 160
515.1024 24,0 38,0 34,0 30,0 15,0 138 515.1109 9,0 78,0 16,0 24,0 12,0 160 515.0924 24,0 38,0 34,0 30,0 16,0 160
515.1025 25,0 40,0 36,0 30,0 16,0 157 515.1110 10,0 78,0 17,0 24,0 12,0 160 515.0925 25,0 78,0 35,8 30,0 24,0 340 17
515.1026 26,0 40,0 38,0 30,0 16,0 158 515.1111 11,0 78,0 18,0 24,0 13,0 160 515.0926 26,0 78,0 37,0 30,0 27,0 340
515.1027 27,0 42,0 38,0 30,0 18,0 158 515.1112 12,0 78,0 20,0 24,0 14,0 160 515.0927 27,0 78,0 38,3 30,0 27,0 410
515.1028 28,0 42,0 40,0 30,0 18,0 189 515.1113 13,0 78,0 21,0 24,0 14,0 180 515.0928 28,0 78,0 39,5 30,0 27,0 410
515.1029 29,0 42,0 40,0 30,0 19,0 176 515.1114 14,0 78,0 22,0 24,0 14,0 180 515.0929 29,0 78,0 40,8 30,0 27,0 410 18
515.1030 30,0 42,0 42,0 30,0 19,0 202 515.1115 15,0 78,0 23,0 24,0 15,0 210 515.0930 30,0 78,0 42,1 30,0 30,0 410
515.1031 31,0 42,0 42,0 30,0 20,0 223 515.1116 16,0 78,0 25,0 24,0 16,0 210 515.0931 31,0 78,0 43,3 30,0 30,0 410
515.1032 32,0 44,0 44,0 30,0 20,0 226 515.1117 17,0 78,0 26,0 26,0 17,0 220 515.0933 32,0 78,0 44,6 30,0 32,0 430
515.0040 3/8" 38,0 17,0 24,0 9,0 70 515.1118 18,0 78,0 27,0 28,0 18,0 220 515.0901 3/8" 38,0 17,0 25,0 6,0 70 19
515.0041 7/16" 38,0 18,0 24,0 9,0 70 515.1119 19,0 78,0 28,0 28,0 20,0 220 515.0902 7/16" 38,0 18,5 25,0 8,0 70
515.0042 1/2" 38,0 21,0 24,0 13,0 75 515.1120 20,0 78,0 30,0 30,0 20,0 220 515.0903 1/2" 38,0 20,5 25,0 8,0 75
515.0043 9/16" 38,0 22,0 24,0 13,0 80 515.1121 21,0 78,0 30,0 30,0 22,0 220 515.0904 9/16" 38,0 23,0 25,0 8,0 80
515.0044 5/8" 38,0 25,0 24,0 14,0 115 515.1122 22,0 78,0 32,0 30,0 22,0 230 515.0905 5/8" 38,0 24,5 30,0 9,0 115 20
515.0045 11/16" 38,0 26,0 26,0 16,0 120 515.1123 23,0 78,0 34,0 30,0 24,0 230 515.0906 11/16" 38,0 27,0 30,0 9,0 120
515.0046 3/4" 38,0 28,0 28,0 16,0 120 515.1124 24,0 78,0 34,0 30,0 24,0 310 515.0907 3/4" 38,0 28,0 30,0 10,0 120
515.0047 13/16" 38,0 30,0 30,0 17,0 120 515.1125 25,0 78,0 36,0 30,0 24,0 340 515.0908 13/16" 38,0 30,0 30,0 12,0 120
515.0048 7/8" 38,0 32,0 30,0 18,0 130 515.1126 26,0 78,0 38,0 30,0 27,0 340 515.0909 7/8" 38,0 31,8 30,0 12,0 130
515.0049 15/16" 38,0 34,0 30,0 19,0 135 515.1127 27,0 78,0 38,0 30,0 27,0 410 515.0934 15/16" 38,0 33,8 30,0 14,0 135 21
515.0050 1" 40,0 36,0 30,0 19,0 140 515.1128 28,0 78,0 40,0 30,0 27,0 410 515.0935 1" 40,0 35,8 30,0 14,0 140
515.0051 1.1/16" 42,0 38,0 30,0 20,0 180 515.1129 29,0 78,0 40,0 30,0 27,0 410 515.0936 1.1/16" 43,0 37,8 30,0 14,0 180
515.0052 1.1/8" 42,0 40,0 30,0 20,0 200 515.1130 30,0 78,0 42,0 30,0 30,0 410 515.0937 1.1/8" 43,0 39,8 30,0 16,0 200
515.0053 1.1/4" 42,0 44,0 30,0 21,0 220 515.1131 31,0 78,0 42,0 30,0 31,0 410 515.0938 1.1/4" 43,0 43,8 30,0 18,0 220 22
515.0054 1.5/16" 44,0 44,0 30,0 22,0 230 515.1132 32,0 78,0 44,0 30,0 32,0 430 515.0939 1.5/16" 46,0 44,8 30,0 18,0 230
